Editing Loads

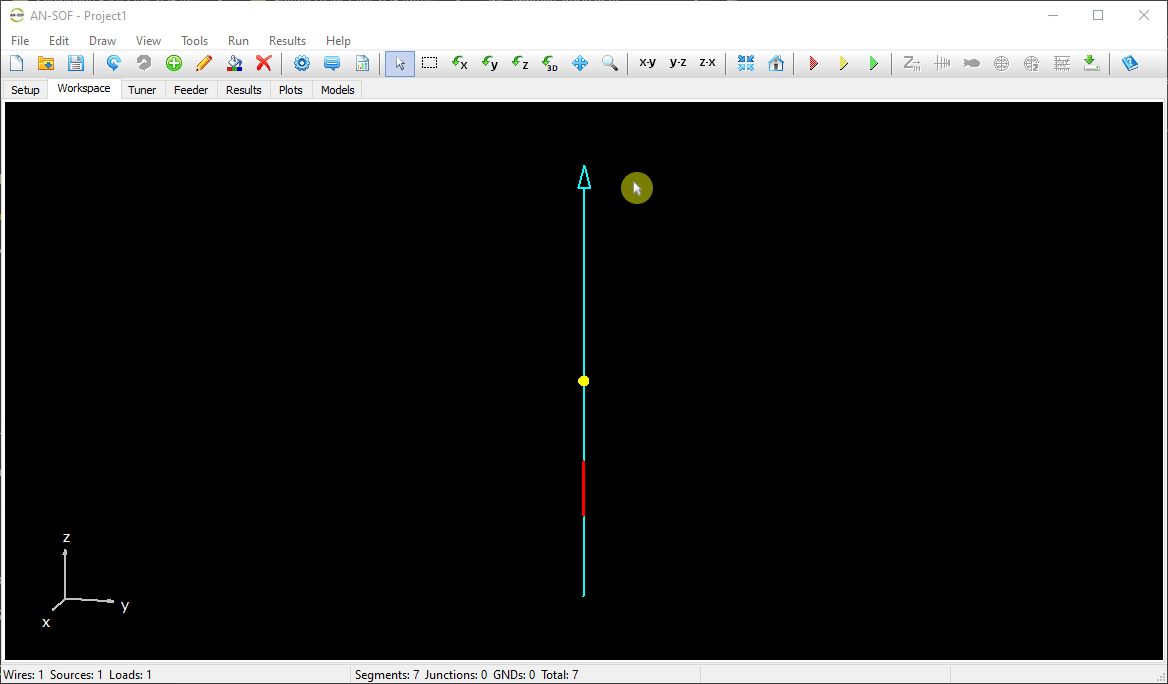

To edit a load on a wire segment, follow these steps:

• Right-click on any part of the wire to open the pop-up menu.
• Select Source / Load / TL (Ctrl +Ins) from the menu to display the Source / Load / TL toolbar.
• Use the slider on the toolbar to select the segment where the load is located.
• Click the Modify button to open the Edit Load dialog box, where you can update the load’s parameters.
• To remove the load, click the Delete button.
• Click the Exit button to close the toolbar.

Tip

• To customize the default color of loads, go to: Main Menu > Tools > Preferences > Workspace tab.
