Calculating the Near H-Field
Created OnOctober 13, 2022
Updated OnApril 30, 2023
By:Tony Golden
Once the current distribution on the structure has been obtained, the near magnetic field at those points in space set in the Near-Field panel > of the Setup tabsheet can be computed.

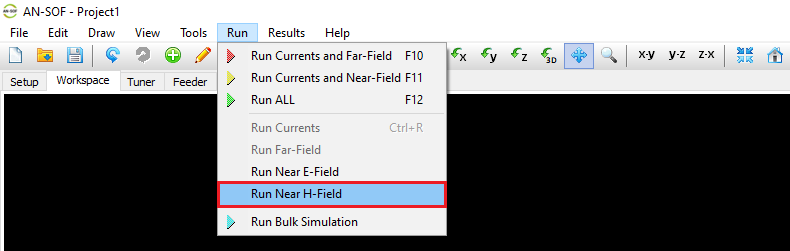

Go to Run > Run Near H-Field in the main menu to run the calculation of the near magnetic field, Fig. 1. This command is only enabled when the current distribution has already been calculated.
Tips
- To run the calculation of the current distribution and the near fields sequentially and automatically, click on the Run Currents and Near-Field (F12) button on the toolbar. This command also runs the calculation of the near electric field.
- Go to Tools > Preferences > Options > in the main menu and check the “Run ALL” also calculates the H-Field option to enable the calculation of the H-field.
